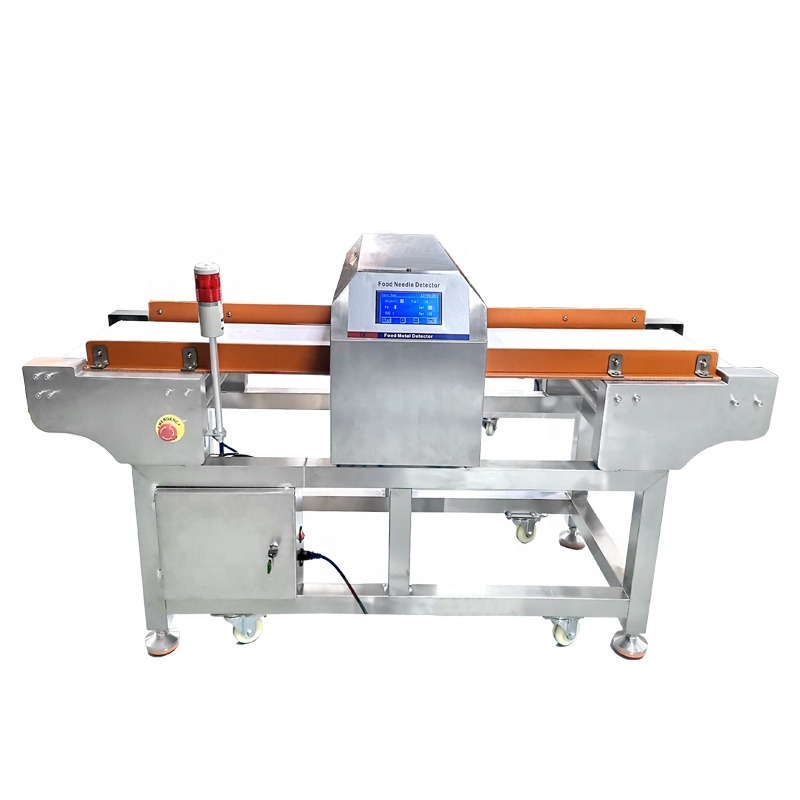

Name: ZT-2001 High Accuracy Metal Detector for Food Packaging Industry
Brand: ZT-2001 High Accuracy Metal Detector for Food Packaging Industry
SKU: ZT-2001
Price: 1 USD
Availability: InStock
Rating: 4.7 (117 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Warranty: 1 year, 24 month

Type: Conveyor Belt Type

Customized support: OEM

Model Number: ZT-2001

Product name: High Precision Metal Detector for Food Packaging Industry

Detection width: 80mm-300mm

Detection height: 50mm-400mm

Detection sensitivity: 0.6mm to 5mm

Alarm mode: Buzzer alarm

Power: 220v 60hz

Work Environment: Temperature -10â„ƒ-40â„ƒ ,relative humility 30-90%

Display: Clear LCD Display

Delivery time: within 7 working days

Βασικές πληροφορίες

Model Number: ZT-2001

Πληρωμής & Αποστολής Όροι

Περιγραφή προϊόντων

Metal Detector for Food Packaging Industry

Product Description

Specification:

Detection width	30-80 cm, Customized
Detection height	8-50cm Customized
Detection sensitivity	See below table
Alarm mode	The buzzer alarm, the motor automatically stop
Transfer speed	25 meter / min or you can select adjust speed
Power	100-265VAC, 50-60Hz (According to customer request)
Size	(150-170)cm(L)(80-90)cm(W)(85-120)cm(H)
Reject system	Option

The reality detector sensitivity depends on the products and operating environment . Please kindly see below:

Detected products Height	80	120	80	100	120	150	200
Detected products Width	300	300	400	400	400	400	400
Belt Width	250	250	350	350	350	350	350
Belt length	1500
Detector sensitivity	Fe0.5	Fe0.8	Fe0.6	Fe0.7	Fe0.8	Fe0.8	Fe1.0
	SUS1.0	SUS1.5	SUS1.0	SUS1.2	SUS1.5	SUS2.0	SUS2.3
	N-Fe0.8	N-Fe1.0	N-Fe0.8	N-Fe1.0	N-Fe1.2	N-Fe1.5	N-Fe1.5
Speed of belt	27M/min (can adjust 5-40 M/min)
Load ability	20KG
Count	100
Reject Ways	Sound and light alarm with belt stoped ;(when has auto-reject system ,belt continue and rejecting the goods )
Application	Non-package ,plastic package ,paper bag or box (non-metallic) product
Work Environment	Temperature -10℃-40℃ ,relative humility 30-90%

Description:

This is new arrival food metal detector. It has touch screen, 10 level adjustable sensitivity and

memory 10 kinds of products etc.But also it has more higher reliability and stability on check

products with water and salt.

1. Adopt the theory of balance, more reliable;

2. Phase-adapted technology can adapt products in order to effectively eliminate product effect.

3. Combination of DSP and Microprocessor is applied to process testing data of detection signal, which can enhance detection efficiency.

4. To stop mistaking in transmission & reception in advance, the detector handles many operations. Easy to adjust the detecting parameters.

5. Large LCD display with Chinese & English language and so on; Consumer can choose according to their needs.

6. Have self- learning study function, can automatically digitally learn and store product’s features.Easy to operate without manual participation to adjust technical parameters.

7. It can store more than 100 kinds of testing data of products.

8. Automatic rejection system can be customized according to consumer’s requirements, which can improve production efficiency and save labor costs.

9. Suitable for wet, dry, dust, dew environment, made of stainless steal, has HACCP attestation, waterproof IP65.

Application:

Food Pipeline Metal Detector for Food Processing is widely used in the detection of meat, frozen meat, sea food, mushrooms, drinks, fruits, Sugar, Salt and vegetables

Packaging & Shipping

Our Services

1. Zotai Service:

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.

2. Onsite Service:

A. Device installation;

B. Equipment Operation Test Technology training;

C. Equipment Calibration;

D. Daily maintenance and maintenance of equipment

3. Free technical training for visiting factories

4. 24-hour Online contact

5. Free software upgrades

6. Free information:

A.Product Instruction;

B.Product operation instruction/video;

C.Experiment Test (test application, test report)

7. Device Problem Handling:

A. Social media 24 hours online communication;

B. Mail Seamless Docking;

C. Video Conferencing;

D. Artificial free door-to-door service

Company Information

Dongguan Zotai Instrument Technology Co., Ltd. specializes in rubber and plastic testing machine, metal detector, textile testing machine and shoe testing machine for more than 10 years. With advanced technology, excellent product quality and best customer service, the products are exported to more than 100 products. Countries and regions have won praises from customers around the world.
We have a professional design team that can customize individual products according to customer requirements.
If you have any questions or concerns, the sales and after-sales service department will respond to you within 24 hours.

FAQ

1.Are your company a trading one or a factory?

Factory + trade (integration), 10 years focusing on test instruments field, 8 years exporting experience.

OEM is also acceptable for us.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

3.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.

5.How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

6.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
